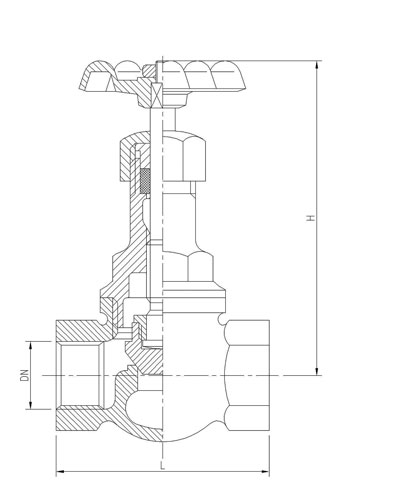

click image to view technical drawing
72611

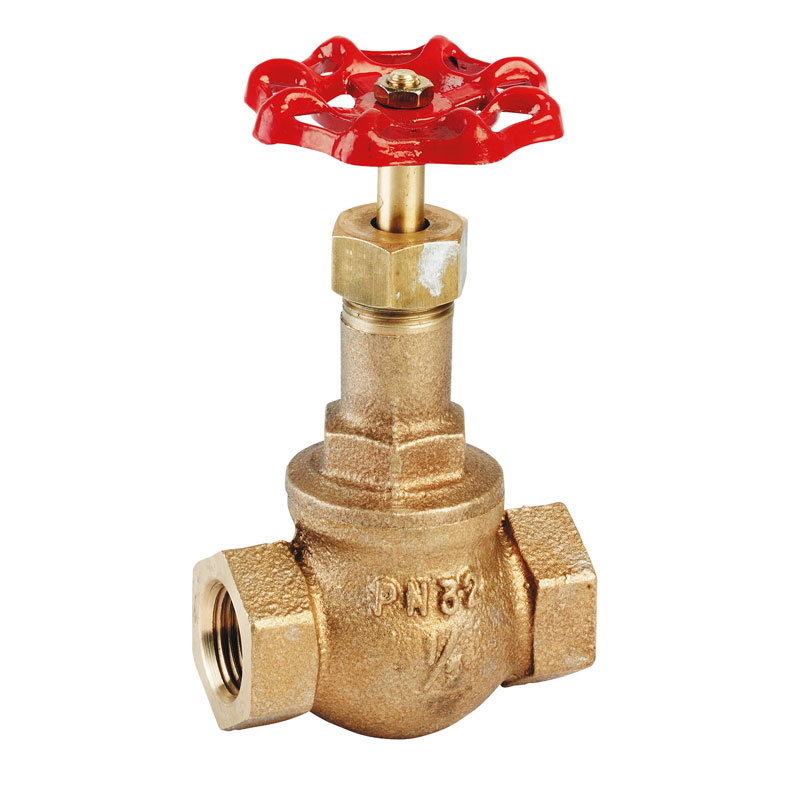

Bronze globe valve PN32 screwed bonnet fxf metal disc
PN32/B 200WSP 400WOG
72612
PTFE DISCPN32/B 200WSP 400WOG
72615
ALL IN BRONZEPN32/A 200WSP 400WOG
Standard Materials
| BODY | BRONZE-CC491K UNI EN1982 |
| BONNET | BRONZE-CC491K UNI EN1982 |
| DISC | BRASS-CW614N UNI EN12164 |
| STEM | BRASS-CW614N UNI EN12164 |
| SEAT | INTEGRAL SEAT |
| 3-8″ | 1-2″ | 3-4″ | 1″ | 1″1-4 | 1″1-2 | 2″ | |
| L mm | 65 | 70 | 85 | 95 | 110 | 125 | 145 |
| H mm | 100 | 115 | 140 | 155 | 180 | 190 | 215 |
| WEIGHT(Kg) | 0,55 | 0,7 | 1,15 | 1,7 | 2,6 | 3,4 | 4,9 |
