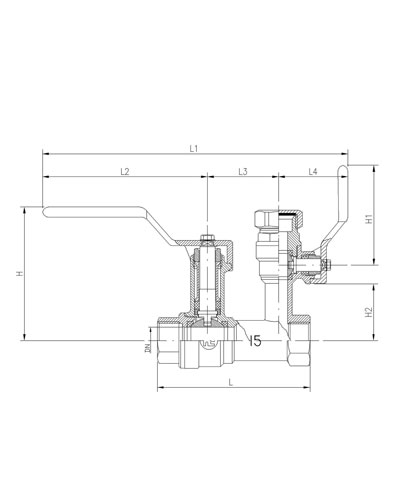

click image to view technical drawing

04366

Brass ball valve PN16 full way fxf double neck, adjustable packing

PN16 600WOG

Standard Materials

BODY	BRASS-CW617N UNI EN12165
BODY END	BRASS-CW617N UNI EN12165
BALL	BRASS-CW614N UNI EN12164
STEM	BRASS-CW614N UNI EN12164
SEAT	PTFE

	1-2"	3-4"	1"	1"1-4	1"1-2	2"
Φ. mm	15	20	25	32	40	46
L mm	85,4	91	98,8	106,8	117	119
L1 mm	169,7	169	202,5	202,5	220	225,5
L2 mm	93	93	125,5	125,5	140	144,5
L3 mm	39,7	39	40	40	43	44
L4 mm	37	37	37	37	37	37
H mm	75	80	85	90	100	138
H1 mm	80	80	80	80	80	80
H2 mm	31,65	45,2	48,6	53	66	84
WEIGHT(Kg)	0,408	0,550	0,800	1,200	1,800	2,570
