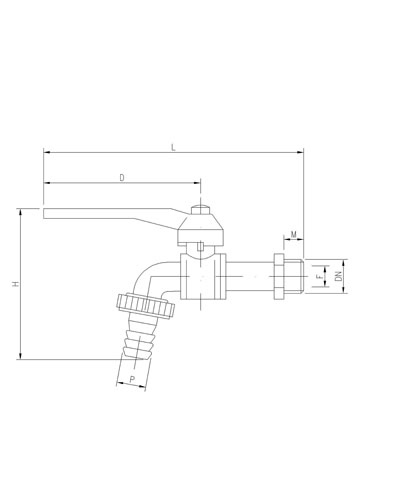

click image to view technical drawing
VSF04708
Brass ball bibcock PN10 m with hose joints
PN10
Standard Materials
| BODY | BRASS-CW617N UNI EN12165 |
| BODY END | BRASS-CW617N UNI EN12165 |
| BALL | BRASS-CW614N UNI EN12164 |
| STEM | BRASS-CW614N UNI EN12164 |
| SEAT | PTFE |
| 1-2" | 3-4" | 1" | |
| D mm | 90 | 90 | 90 |
| H mm | 92 | 103 | 118 |
| L mm | 136 | 155 | 170 |
| M mm | 10 | 14 | 15 |
| P mm | 14 | 20 | 25 |
| F mm | 10 | 12 | 14 |
| WEIGHT(Kg) | 0,190 | 0,320 | 0,435 |
